40 FT Shipping Container Specifications

Product Name: 40 FT Shipping Container
Type: Standard / High Cube (as applicable)
Material: Corrosion-resistant Corten steel
External Dimensions:
Standard: 12.19 m (L) × 2.44 m (W) × 2.59 m (H)
High Cube: 12.19 m (L) × 2.44 m (W) × 2.89 m (H)
Internal Dimensions:
Standard: 12.03 m (L) × 2.35 m (W) × 2.39 m (H)
High Cube: 12.03 m (L) × 2.35 m (W) × 2.69 m (H)
Door Opening: 2.34 m (W) × 2.28 m (H)
Tare Weight: Approx. 3,800 kg
Max Gross Weight: 30,480 kg
Payload Capacity: Approx. 26,680 kg
Volume Capacity: Standard: 67.7 m³; High Cube: 76.4 m³
Flooring: Marine-grade plywood or steel reinforced floor
Finish: Anti-corrosion coating and primer paint
Application: International shipping, storage, or container conversion
Additional Features: Weatherproof, stackable, secure locking system, ISO certified

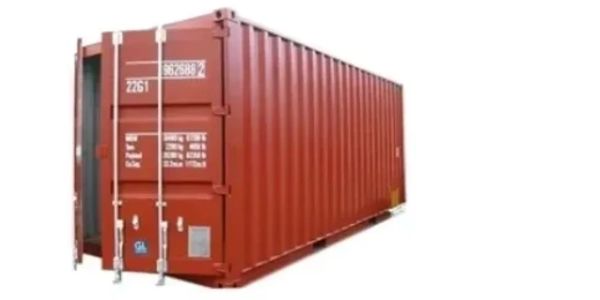

20 FT Shipping Container Specifications

Product Name: 20 FT Shipping Container
Type: Standard / High Cube (as applicable)
Material: Corrosion-resistant Corten steel
External Dimensions:
Standard: 6.06 m (L) × 2.44 m (W) × 2.59 m (H)
High Cube: 6.06 m (L) × 2.44 m (W) × 2.89 m (H)
Internal Dimensions:
Standard: 5.90 m (L) × 2.35 m (W) × 2.39 m (H)
High Cube: 5.90 m (L) × 2.35 m (W) × 2.69 m (H)
Door Opening: 2.34 m (W) × 2.28 m (H)
Tare Weight: Approx. 2,200 kg
Max Gross Weight: 24,000 kg
Payload Capacity: Approx. 21,800 kg
Volume Capacity: Standard: 33.2 m³; High Cube: 37.4 m³
Flooring: Marine-grade plywood or steel reinforced floor
Finish: Anti-corrosion coating and primer paint
Application: International shipping, storage, or container conversion
Additional Features: Weatherproof, stackable, secure locking system, ISO certified

Refrigerated Shipping Container Specifications

Product Name: Refrigerated Shipping Container (Reefer)
Type: 20 FT / 40 FT Reefer (as applicable)
Material: Corrosion-resistant Corten steel with insulated walls
Cooling System: Built-in refrigeration unit with temperature control
Temperature Range: -25°C to +25°C (adjustable)
External Dimensions:
20 FT: 6.06 m (L) × 2.44 m (W) × 2.59 m (H)
40 FT: 12.19 m (L) × 2.44 m (W) × 2.59 m (H)
Internal Dimensions:
20 FT: 5.50 m (L) × 2.29 m (W) × 2.23 m (H)
40 FT: 11.56 m (L) × 2.29 m (W) × 2.26 m (H)
Door Opening: 2.26 m (W) × 2.27 m (H)
Tare Weight: 20 FT: ~3,000 kg; 40 FT: ~4,500 kg
Max Gross Weight: 20 FT: 24,000 kg; 40 FT: 30,480 kg
Payload Capacity: 20 FT: ~21,000 kg; 40 FT: ~26,000 kg
Volume Capacity: 20 FT: 28–30 m³; 40 FT: 65–67 m³
Flooring: Insulated, non-slip marine-grade plywood or aluminum
Power Supply: 220V / 380V or diesel generator (as applicable)
Application: Transport and storage of perishable goods like food, pharmaceuticals, and temperature-sensitive products
Additional Features: ISO certified, weatherproof, stackable, precise temperature control, energy-efficient
